MAX7060 280MHz to 450MHz Programmable ASK/FSK Transmitter

MAX7060 Description

19-5096; Rev 0; 2/10 www.DataSheet4U.com 280MHz to 450MHz Programmable ASK/FSK Transmitter General .
The MAX7060 frequency and power-programmable ASK/FSK transmitter operates at 280MHz to 450MHz frequencies.

MAX7060 Features

* S Fully Integrated, Fast Fractional-N PLL 280MHz to 450MHz RF Frequency Frequency Range 100% Tested at +125NC < 250µs Startup Time Adjustable FSK Mark and Space Frequencies Ultra-Clean FSK Modulation 50kbps Manchester Data Rate ASK 70kbps Manchester Data Rate FSK S Programmable Power

MAX7060 Applications

* Garage-Door Openers Remote Controls Home and Industrial Automation Sensor Networks Security Systems Ordering Information PART MAX7060ATG+ TEMP RANGE -40NC to +125NC PIN-PACKAGE 24 TQFN-EP
* MAX7060ATG/V+ -40NC to +125NC 24 TQFN-EP
* +Denotes a lead(Pb)-free/RoHS-compliant package. /V denotes

📥 Download Datasheet

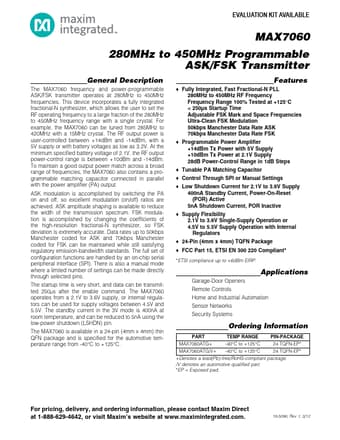

Preview of MAX7060 PDF
