MAX1174, MAX1156 - Single-Supply ADCs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX1174, MAX1156. Please refer to the document for exact specifications by model.

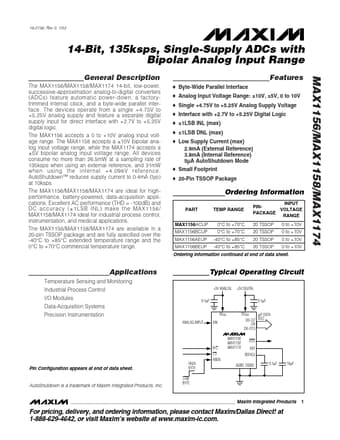

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MAX1174, MAX1156
Manufacturer Maxim Integrated ↗
File Size 282.20 KB
Description Single-Supply ADCs
Datasheet download datasheet MAX1156-MaximIntegrated.pdf
Note This datasheet PDF includes multiple part numbers: MAX1174, MAX1156.
Please refer to the document for exact specifications by model.

MAX1174 Product details

Description

The MAX1156/MAX1158/MAX1174 14-bit, low-power, successive-approximation analog-to-digital converters (ADCs) feature automatic power-down, a factorytrimmed internal clock, and a byte-wide parallel interface.
