MAX117, MAX117CPI Datasheet - Maxim

MAX117 8-Bit ADCs

The MAX113/MAX117 are microprocessor-compatible, 8-bit, 4-channel and 8-channel analog-to-digital converters (ADCs). They operate from a single +3V supply and use a half-flash technique to achieve a 1.8µs conversion time (400ksps). A power-down pin (PWRDN) reduces current consumption to 1µA typical..

MAX117 Features

* o +3.0V to +3.6V Single-Supply Operation o 4 (MAX113) or 8 (MAX117) Analog Input Channels o Low Power: 1.5mA (operating mode) 1µA (power-down mode) o Total Unadjusted Error ≤ 1LSB o Fast Conversion Time: 1.8µs per Channel o No External Clock Required o Internal Track/Hold o Ratiometric Reference Inp

MAX117CPI_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX117, MAX117CPI. Please refer to the document for exact specifications by model.

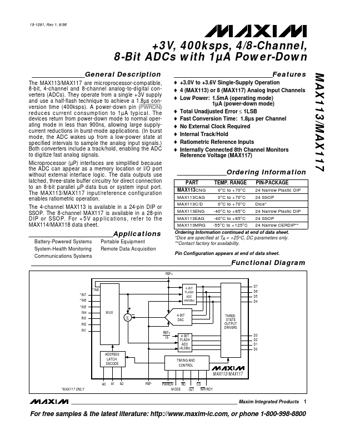

MAX117 Datasheet Preview Page 2 MAX117 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX117, MAX117CPI

Manufacturer:

Maxim

File Size:

106.99 KB

Description:

8-bit adcs.

Note:

This datasheet PDF includes multiple part numbers: MAX117, MAX117CPI.
Please refer to the document for exact specifications by model.
