MAX1177 - 16-Bit / 135ksps / Single-Supply ADC

Maxim

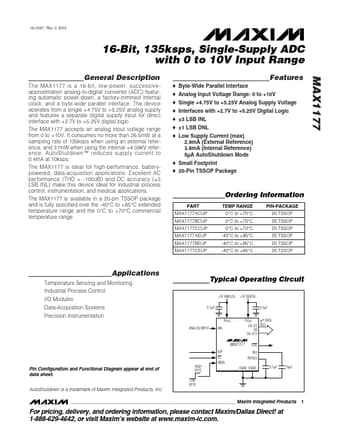

MAX1177 Datasheet Preview — Preview of MAX1177 PDF

Datasheet Details

Part number	MAX1177
Manufacturer	Maxim
File Size	293.13 KB
Description	16-Bit / 135ksps / Single-Supply ADC
Datasheet	MAX1177_MaximIntegratedProducts.pdf

MAX1177 Product details

Description

The MAX1177 is a 16-bit, low-power, successiveapproximation analog-to-digital converter (ADC) featuring automatic power-down, a factory-trimmed internal clock, and a byte-wide parallel interface.

Features

a separate digital supply input for direct interface with +2.7V to +5.25V digital logic. The MAX1177 accepts an analog input voltage range from 0 to +10V. It consumes no more than 26.5mW at a sampling rate of 135ksps when using an external reference, and 31mW when using the internal +4.096V reference. AutoShutdown™ reduces supply current to 0.4mA at 10ksps. The MAX1177 is ideal for high-performance, batterypowered, data-acquisition.
