MAX1172

12-Bit / 30Msps / TTL-Output ADC

MAX1172 Features

* o Monolithic, 12-Bit, 30Msps Converter o On-Chip Track/Hold o ±2.0V Analog Input Range o High Input Impedance o 66dB SNR at 1MHz Input o Low Power: 1.1W o 5pF Input Capacitance o TTL-Compatible Outputs _________________General Description The MAX1172 analog-to-digital converter (ADC) is a 12-bit mo

MAX1172 General Description

The MAX1172 analog-to-digital converter (ADC) is a 12-bit monolithic ADC capable of sample rates greater than 30Msps. An on-board input buffer and track/hold function ensure excellent dynamic performance without the need for external components. A 5pF input capacitance minimizes development problems.

MAX1172 Datasheet (84.33 KB)

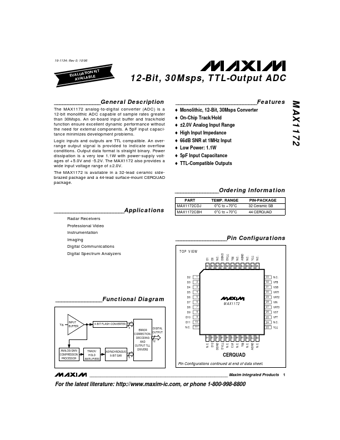

Preview of MAX1172 PDF

Datasheet Details

Part number:

MAX1172

Manufacturer:

Maxim

File Size:

84.33 KB

Description:

12-bit / 30msps / ttl-output adc.
