MAX1178 - 16-Bit / 135ksps / Single-Supply ADCs

Maxim

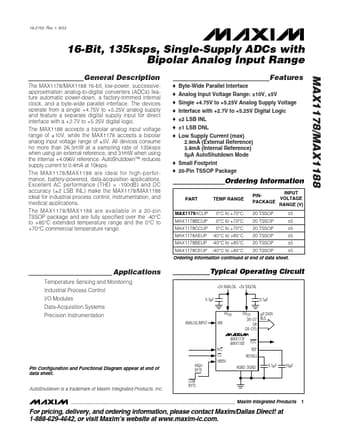

MAX1178 Datasheet Preview — Preview of MAX1178 PDF

Datasheet Details

Part number	MAX1178
Manufacturer	Maxim
File Size	330.62 KB
Description	16-Bit / 135ksps / Single-Supply ADCs
Datasheet	MAX1178_MaximIntegratedProducts.pdf

MAX1178 Product details

Description

The MAX1178/MAX1188 16-bit, low-power, successiveapproximation analog-to-digital converters (ADCs) feature automatic power-down, a factory-trimmed internal clock, and a byte-wide parallel interface.

Features

MAX1178/MAX1188 Ordering Information PART MAX1178ACUP MAX1178BCUP MAX1178CCUP MAX1178AEUP MAX1178BEUP MAX1178CEUP TEMP RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -40°C to +85°C INPUT.
