MAX4101 - Low-Power Op Amps

Datasheet Summary

Description

The MAX4100/MAX4101 op amps combine ultra-highspeed performance with low-power operation.

The MAX4100 is compensated for unity-gain stability, while the MAX4101 is compensated for stability in applications with a closed-loop gain (AVCL) of 2V/V or greater.

Features

  • o 500MHz Unity-Gain Bandwidth (MAX4100) 200MHz -3dB Bandwidth (AVCL = 2V/V, MAX4101) o 65MHz 0.1dB Gain Flatness (MAX4100) o 250V/µs Slew Rate o 0.06%/0.04° Diff.

📥 Download Datasheet

Datasheet preview – MAX4101

Datasheet Details

Part number MAX4101
Manufacturer Maxim Integrated
File Size 142.01 KB
Description Low-Power Op Amps
Datasheet download datasheet MAX4101 Datasheet
Additional preview pages of the MAX4101 datasheet.

📁 Similar Datasheet

  • MAX410 - Single/Dual/Quad / 28MHz / Low-Noise / Low-Voltage / Precision Op Amps (Maxim)
  • MAX4100 - 500MHz / Low-Power Op Amps (Maxim)
  • MAX4102 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps (Maxim)
  • MAX4104 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4105 - Op Amps (Maxim)
  • MAX4106 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4107 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4108 - 400MHz / Ultra-Low-Distortion Op Amps (Maxim)
  • MAX4111 - 330MHz Buffered Video Switches/ Crosspoint Building Blocks (Maxim)
  • MAX4112 - Single/Dual/Quad / 400MHz / Low-Power / Current Feedback Amplifiers (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4103 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps
  • MAX4109 - Ultra-Low-Distortion Op Amps
  • MAX4130 - Rail-to-Rail I/O Op Amps
  • MAX4131 - Rail-to-Rail I/O Op Amps
  • MAX4132 - Rail-to-Rail I/O Op Amps
  • MAX4133 - Rail-to-Rail I/O Op Amps
  • MAX4134 - Rail-to-Rail I/O Op Amps
  • MAX4144 - Differential Line Receivers

Full PDF Text Transcription

Click to expand full text

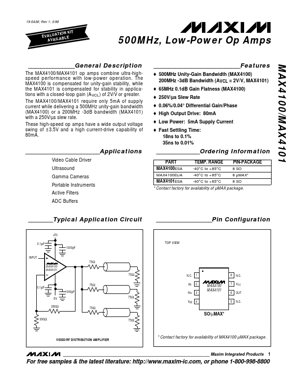

19-0436; Rev 1; 3/96 EVAALVUAAILTAIOBNLEKIT 500MHz, Low-Power Op Amps MAX4100/MAX4101 _______________General Description The MAX4100/MAX4101 op amps combine ultra-highspeed performance with low-power operation. The MAX4100 is compensated for unity-gain stability, while the MAX4101 is compensated for stability in applications with a closed-loop gain (AVCL) of 2V/V or greater. The MAX4100/MAX4101 require only 5mA of supply current while delivering a 500MHz unity-gain bandwidth (MAX4100) or a 200MHz -3dB bandwidth (MAX4101) with a 250V/µs slew rate. These high-speed op amps have a wide output voltage swing of ±3.5V and a high current-drive capability of 80mA.
