MAX4103 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps

This page provides the datasheet information for the MAX4103, a member of the MAX4102 250MHz / Broadcast-Quality / Low-Power Video Op Amps family.

Datasheet Summary

Description

The MAX4102/MAX4103 op amps combine high-speed performance and ultra-low differential gain and phase while drawing only 5mA of supply current.

The MAX4102 is compensated for unity-gain stability, while the MAX4103 is compensated for a closed-loop gain (AVCL) of 2V/V or greater.

Features

  • o 250MHz -3dB Bandwidth (MAX4102) 180MHz -3dB Bandwidth (MAX4.

📥 Download Datasheet

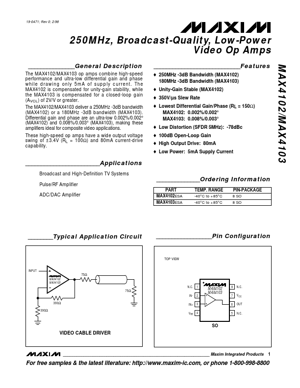

Datasheet preview – MAX4103

Datasheet Details

Part number MAX4103
Manufacturer Maxim Integrated
File Size 144.91 KB
Description 250MHz / Broadcast-Quality / Low-Power Video Op Amps
Datasheet download datasheet MAX4103 Datasheet
Additional preview pages of the MAX4103 datasheet.

📁 Similar Datasheet

  • MAX410 - Single/Dual/Quad / 28MHz / Low-Noise / Low-Voltage / Precision Op Amps (Maxim)
  • MAX4100 - 500MHz / Low-Power Op Amps (Maxim)
  • MAX4102 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps (Maxim)
  • MAX4104 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4105 - Op Amps (Maxim)
  • MAX4106 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4107 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4108 - 400MHz / Ultra-Low-Distortion Op Amps (Maxim)
  • MAX4111 - 330MHz Buffered Video Switches/ Crosspoint Building Blocks (Maxim)
  • MAX4112 - Single/Dual/Quad / 400MHz / Low-Power / Current Feedback Amplifiers (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4101 - Low-Power Op Amps
  • MAX4109 - Ultra-Low-Distortion Op Amps
  • MAX4130 - Rail-to-Rail I/O Op Amps
  • MAX4131 - Rail-to-Rail I/O Op Amps
  • MAX4132 - Rail-to-Rail I/O Op Amps
  • MAX4133 - Rail-to-Rail I/O Op Amps
  • MAX4134 - Rail-to-Rail I/O Op Amps
  • MAX4144 - Differential Line Receivers

Full PDF Text Transcription

Click to expand full text
MAX4102/MAX4103 19-0471; Rev 0; 2/96 250MHz, Broadcast-Quality, Low-Power Video Op Amps _______________General Description The MAX4102/MAX4103 op amps combine high-speed performance and ultra-low differential gain and phase while drawing only 5mA of supply current. The MAX4102 is compensated for unity-gain stability, while the MAX4103 is compensated for a closed-loop gain (AVCL) of 2V/V or greater. The MAX4102/MAX4103 deliver a 250MHz -3dB bandwidth (MAX4102) or a 180MHz -3dB bandwidth (MAX4103). Differential gain and phase are an ultra-low 0.002%/0.002° (MAX4102) and 0.008%/0.003° (MAX4103), making these amplifiers ideal for composite video applications. These high-speed op amps have a wide output voltage swing of ±3.4V (RL = 100Ω) and 80mA current-drive capability.
