MAX4102 Datasheet - Maxim

MAX4102 250MHz / Broadcast-Quality / Low-Power Video Op Amps

The MAX4102/MAX4103 op amps combine high-speed performance and ultra-low differential gain and phase while drawing only 5mA of supply current. The MAX4102 is compensated for unity-gain stability, while the MAX4103 is compensated for a closed-loop gain (AVCL) of 2V/V or greater. The MAX4102/MAX4103 d.

MAX4102 Features

* o 250MHz -3dB Bandwidth (MAX4102) 180MHz -3dB Bandwidth (MAX4103) o Unity-Gain Stable (MAX4102) o 350V/µs Slew Rate o Lowest Differential Gain/Phase (RL = 150Ω) MAX4102: 0.002%/0.002° MAX4103: 0.008%/0.003° o Low Distortion (SFDR 5MHz): -78dBc o 100dB Open-Loop Gain o High Output Drive: 80mA o Low P

MAX4102_MaximIntegratedProducts.pdf

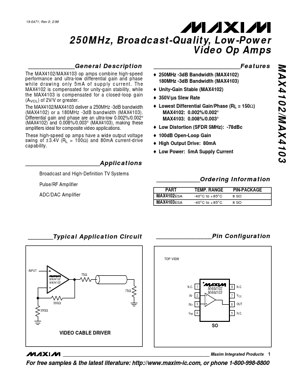

Preview of MAX4102 PDF
