MAX4132 - Rail-to-Rail I/O Op Amps

This page provides the datasheet information for the MAX4132, a member of the MAX4130 Rail-to-Rail I/O Op Amps family.

Datasheet Summary

Description

The MAX4130

MAX4134 family of operational amplifiers combines 10MHz gain-bandwidth product and excellent DC accuracy with rail-to-rail operation at the inputs and outputs.

📥 Download Datasheet

Datasheet preview – MAX4132

Datasheet Details

Part number MAX4132
Manufacturer Maxim Integrated
File Size 238.92 KB
Description Rail-to-Rail I/O Op Amps
Datasheet download datasheet MAX4132 Datasheet
Additional preview pages of the MAX4132 datasheet.

📁 Similar Datasheet

  • MAX4135 - 1-Input/4-Output Video Distribution Amplifiers (Maxim)
  • MAX4136 - 1-Input/4-Output Video Distribution Amplifiers (Maxim)
  • MAX4137 - 1-Input/6-Output Video Distribution Amplifiers (Maxim)
  • MAX4138 - 1-Input/4-Output Video Distribution Amplifiers (Maxim)
  • MAX410 - Single/Dual/Quad / 28MHz / Low-Noise / Low-Voltage / Precision Op Amps (Maxim)
  • MAX4100 - 500MHz / Low-Power Op Amps (Maxim)
  • MAX4102 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps (Maxim)
  • MAX4104 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
  • MAX4105 - Op Amps (Maxim)
  • MAX4106 - 350MHz / Ultra-Low-Noise Op Amps (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4130 - Rail-to-Rail I/O Op Amps
  • MAX4131 - Rail-to-Rail I/O Op Amps
  • MAX4133 - Rail-to-Rail I/O Op Amps
  • MAX4134 - Rail-to-Rail I/O Op Amps
  • MAX4101 - Low-Power Op Amps
  • MAX4103 - 250MHz / Broadcast-Quality / Low-Power Video Op Amps
  • MAX4109 - Ultra-Low-Distortion Op Amps
  • MAX4144 - Differential Line Receivers

Full PDF Text Transcription

Click to expand full text

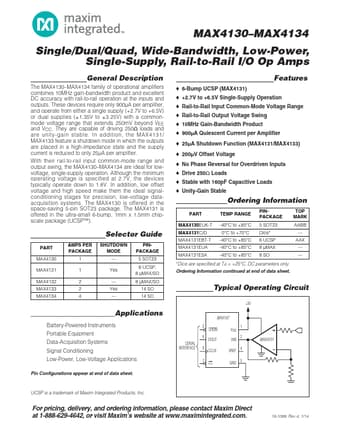

MAX4130–MAX4134 Single/Dual/Quad, Wide-Bandwidth, Low-Power, Single-Supply, Rail-to-Rail I/O Op Amps General Description The MAX4130–MAX4134 family of operational amplifiers combines 10MHz gain-bandwidth product and excellent DC accuracy with rail-to-rail operation at the inputs and outputs. These devices require only 900µA per amplifier, and operate from either a single supply (+2.7V to +6.5V) or dual supplies (±1.35V to ±3.25V) with a commonmode voltage range that extends 250mV beyond VEE and VCC. They are capable of driving 250Ω loads and are unity-gain stable. In addition, the MAX4131/ MAX4133 feature a shutdown mode in which the outputs are placed in a high-impedance state and the supply current is reduced to only 25µA per amplifier.
