MAX4137 1-Input/6-Output Video Distribution Amplifiers

Maxim

Description

19-2001; Rev 0; 6/96 KIT ATION EVALU BLE A IL A V A 1-Input/4-Output Video Distribution Amplifiers _______________General .
The MAX4137/MAX4138 are 1-input/4-output voltagefeedback amplifiers that combine high speed with fast switching for video distribution applications.

📥 Download Datasheet

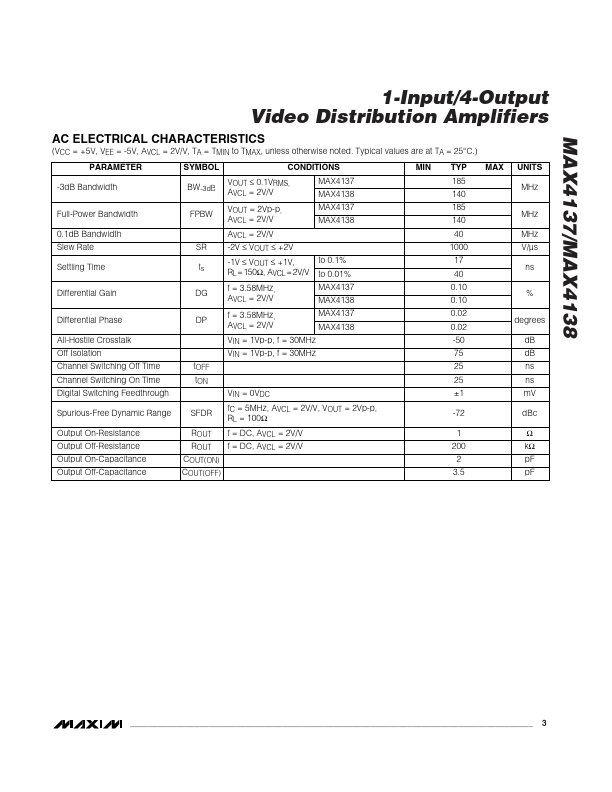

MAX4137 Datasheet Preview — Preview of MAX4137 PDF

Datasheet Specifications

Part number: MAX4137
Manufacturer: Maxim
File Size: 220.34 KB
Datasheet: MAX4137_MaximIntegratedProducts.pdf
Description: 1-Input/6-Output Video Distribution Amplifiers

Features

* o Fixed Gain of 2V/V (MAX4137) External Gain Set (MAX4138) o High Speed: 185MHz -3dB Bandwidth (MAX4137) 140MHz -3dB Bandwidth (MAX4138) 1000V/µs Slew Rate o High Full-Power Bandwidths (VOUT = 2Vp-p): 185MHz (MAX4137) 140MHz (MAX4138) o 0.1dB Gain Flatness to 40MHz o Low Differential Gain/Phase Erro

Applications

* The MAX4137 is internally set for a closed-loop gain of 2V/V, while the MAX4138 can be externally set for gains of 2V/V or greater. The MAX4137 achieves a -3dB bandwidth of 185MHz, with 0.1dB gain flatness to 40MHz. The MAX4138’s -3dB bandwidth is 140MHz, with 0.1dB gain flatness to 40MHz. Both dev
