MAX4100, MAX 500MHz / Low-Power Op Amps

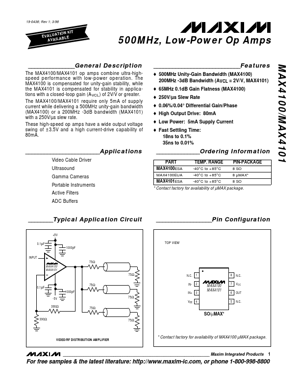

19-0436; Rev 1; 3/96 KIT ATION EVALU E L B A IL AVA 500MHz, Low-Power Op Amps ____________________________.
The MAX4100/MAX4101 op amps combine ultra-highspeed performance with low-power operation.

MAX-4100.pdf

MAX4100 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX4100, MAX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX4100, MAX

Manufacturer:

Maxim

File Size:

144.19 KB

Description:

500MHz / Low-Power Op Amps

Note:

This datasheet PDF includes multiple part numbers: MAX4100, MAX.
Please refer to the document for exact specifications by model.

Features

* o 500MHz Unity-Gain Bandwidth (MAX4100) 200MHz -3dB Bandwidth (AVCL = 2V/V, MAX4101) o 65MHz 0.1dB Gain Flatness (MAX4100) o 250V/µs Slew Rate o 0.06%/0.04° Differential Gain/Phase o High Output Drive: 80mA o Low Power: 5mA Supply Current o Fast Settling Time: 18ns to 0.1% 35ns to 0.01% ___________

Applications

* with a closed-loop gain (AVCL) of 2V/V or greater. The MAX4100/MAX4101 require only 5mA of supply current while delivering a 500MHz unity-gain bandwidth (MAX4100) or a 200MHz -3dB bandwidth (MAX4101) with a 250V/µs slew rate. These high-speed op amps have a wide output voltage swing of ±3.5V and a h
