MAX4281 - Fixed-Gain GainAmps/Open-Loop Op Amps

This page provides the datasheet information for the MAX4281, a member of the MAX4174 Fixed-Gain GainAmps/Open-Loop Op Amps family.

Datasheet Summary

Description

The MAX4174/MAX4175/MAX4274/MAX4275 GainAmp™ family combines a low-cost Rail-to-Rail® op amp with precision internal gain-setting resistors and VCC / 2 biasing.

Factory-trimmed on-chip resistors decrease design size, cost, and layout, and provide 0.1% gain accuracy.

📥 Download Datasheet

Datasheet preview – MAX4281

Datasheet Details

Part number MAX4281
Manufacturer Maxim Integrated
File Size 298.55 KB
Description Fixed-Gain GainAmps/Open-Loop Op Amps
Datasheet download datasheet MAX4281 Datasheet
Additional preview pages of the MAX4281 datasheet.

📁 Similar Datasheet

  • MAX428 - High Output Current Operational Amplifier (Maxim)
  • MAX4285 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable (Maxim)
  • MAX4286 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable (Maxim)
  • MAX4287 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable (Maxim)
  • MAX4288 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable (Maxim)
  • MAX4289 - 1.0V Micropower / SOT23 / Operational Amplifier (Maxim)
  • MAX420 - 15 Volt Chopper Stabilized Operational Amplifier (Maxim)
  • MAX4208 - Precision Instrumentation Amplifiers (Maxim Integrated Products)
  • MAX4209 - Precision Instrumentation Amplifiers (Maxim Integrated Products)
  • MAX4210 - High-Side Power and Current Monitors (Maxim)
Other Datasheets by Maxim Integrated
  • MAX4282 - Fixed-Gain GainAmps/Open-Loop Op Amps
  • MAX4284 - Fixed-Gain GainAmps/Open-Loop Op Amps
  • MAX4200 - SOT23 Open-Loop Buffers
  • MAX4201 - SOT23 Open-Loop Buffers
  • MAX4202 - SOT23 Open-Loop Buffers
  • MAX4203 - SOT23 Open-Loop Buffers
  • MAX4204 - SOT23 Open-Loop Buffers
  • MAX4205 - SOT23 Open-Loop Buffers

Full PDF Text Transcription

Click to expand full text

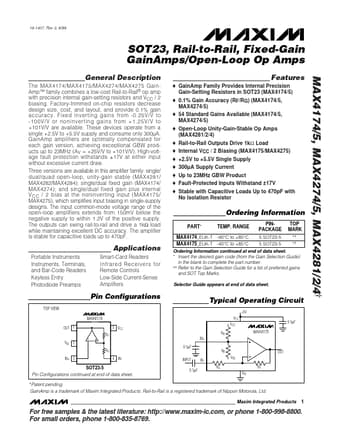

19-1407; Rev 3; 8/99 MAX4174/5, MAX4274/5, MAX4281/2/4† SOT23, Rail-to-Rail, Fixed-Gain GainAmps/Open-Loop Op Amps General Description The MAX4174/MAX4175/MAX4274/MAX4275 GainAmp™ family combines a low-cost Rail-to-Rail® op amp with precision internal gain-setting resistors and VCC / 2 biasing. Factory-trimmed on-chip resistors decrease design size, cost, and layout, and provide 0.1% gain accuracy. Fixed inverting gains from -0.25V/V to -100V/V or noninverting gains from +1.25V/V to +101V/V are available. These devices operate from a single +2.5V to +5.5V supply and consume only 300µA. GainAmp amplifiers are optimally compensated for each gain version, achieving exceptional GBW products up to 23MHz (AV = +25V/V to +101V/V).
