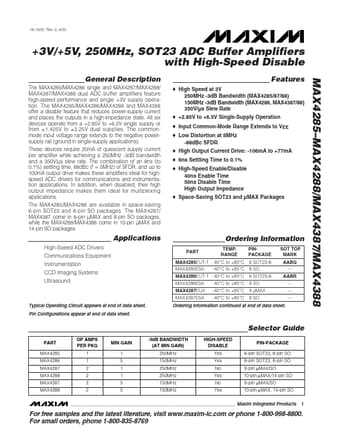

Description
The MAX4285/MAX4286 single and MAX4287/MAX4288/ MAX4387/MAX4388 dual ADC buffer amplifiers feature high-speed performance and single +3V supply operation.
Features
- o High Speed at 3V 250MHz -3dB Bandwidth (MAX4285/87/88) 150MHz -3dB Bandwidth (MAX4286, MAX4387/88) 350V/µs Slew Rate o +2.85V to +6.5V Single-Supply Operation o Input Common-Mode Range Extends to VEE o Low Distortion at 5MHz -88dBc SFDR o High Output Current Drive: -106mA to +77mA o 6ns Settling Time to 0.1% o High-Speed Enable/Disable 40ns Enable Time 50ns Disable Time High Output Impedance o Space-Saving SOT23 and µMAX Packages
MAX4285.
- MAX4288/MAX4387/MAX4388.
