MAX4285 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable

This page provides the datasheet information for the MAX4285, a member of the MAX +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable family.

Datasheet Summary

Description

The MAX4285/MAX4286 single and MAX4287/MAX4288/ MAX4387/MAX4388 dual ADC buffer amplifiers feature high-speed performance and single +3V supply operation.

Features

  • o High Speed at 3V 250MHz -3dB Bandwidth (MAX4285/87/88) 150MHz -3dB Bandwidth (MAX4286, MAX4387/88) 350V/µs Slew Rate o +2.85V to +6.5V Single-Supply Operation o Input Common-Mode Range Extends to VEE o Low Distortion at 5MHz -88dBc SFDR o High Output Current Drive: -106mA to +77mA o 6ns Settling Time to 0.1% o High-Speed Enable/Disable 40ns Enable Time 50ns Disable Time High Output Impedance o Space-Saving SOT23 and µMAX Packages MAX4285.
  • MAX4288/MAX4387/MAX4388.

📥 Download Datasheet

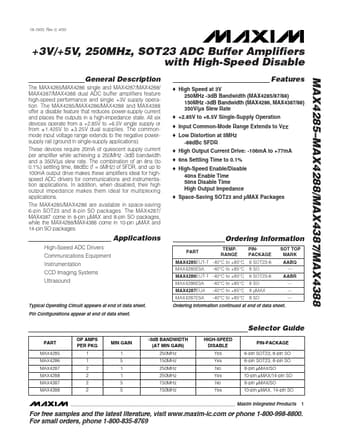

Datasheet preview – MAX4285

Datasheet Details

Part number MAX4285
Manufacturer Maxim
File Size 377.21 KB
Description +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
Datasheet download datasheet MAX4285 Datasheet
Additional preview pages of the MAX4285 datasheet.

📁 Similar Datasheet

  • MAX4281 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
  • MAX4282 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
  • MAX4284 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
  • MAX4200 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4201 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4202 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4203 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4204 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4205 - SOT23 Open-Loop Buffers (Maxim Integrated)
  • MAX4206 - Precision Transimpedance Logarithmic Amplifier (Maxim Integrated)
Other Datasheets by Maxim
  • MAX428 - High Output Current Operational Amplifier
  • MAX4286 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
  • MAX4287 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
  • MAX4288 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
  • MAX4289 - 1.0V Micropower / SOT23 / Operational Amplifier
  • MAX420 - 15 Volt Chopper Stabilized Operational Amplifier
  • MAX4210 - High-Side Power and Current Monitors
  • MAX4211 - High-Side Power and Current Monitors

Full PDF Text Transcription

Click to expand full text
19-1500; Rev 0; 4/00 +3V/+5V, 250MHz, SOT23 ADC Buffer Amplifiers with High-Speed Disable General Description The MAX4285/MAX4286 single and MAX4287/MAX4288/ MAX4387/MAX4388 dual ADC buffer amplifiers feature high-speed performance and single +3V supply operation. The MAX4285/MAX4286/MAX4288 and MAX4388 offer a disable feature that reduces power-supply current and places the outputs in a high-impedance state. All six devices operate from a +2.85V to +6.5V single supply or from ±1.425V to ±3.25V dual supplies. The commonmode input voltage range extends to the negative powersupply rail (ground in single-supply applications). These devices require 20mA of quiescent supply current per amplifier while achieving a 250MHz -3dB bandwidth and a 350V/µs slew rate. The combination of an 8ns (to 0.
