MAX4288 Datasheet, Disable, Maxim

MAX4288 Features

  • Disable o High Speed at 3V 250MHz -3dB Bandwidth (MAX4285/87/88) 150MHz -3dB Bandwidth (MAX4286, MAX4387/88) 350V/µs Slew Rate o +2.85V to +6.5V Single-Supply Operation o Input Common-Mode Rang

PDF File Details

Part number:

MAX4288

Manufacturer:

Maxim

File Size:

377.21kb

Download:

📄 Datasheet

Description:

+3v/+5v / 250mhz / sot23 adc buffer amplifiers with high-speed disable. The MAX4285/MAX4286 single and MAX4287/MAX4288/ MAX4387/MAX4388 dual ADC buffer amplifiers feature high-speed performance and single

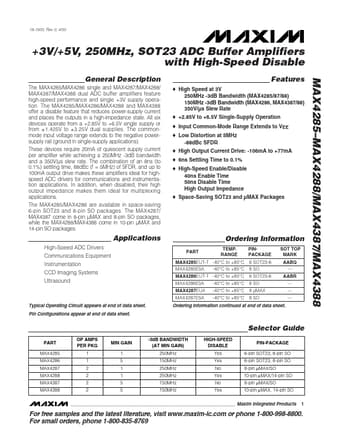

Datasheet Preview: MAX4288 📥 Download PDF (377.21kb)
Page 2 of MAX4288 Page 3 of MAX4288

MAX4288 Application

  • Applications . These devices require 20mA of quiescent supply current per amplifier while achieving a 250MHz -3dB bandwidth and a 350V/µs slew rate.
