MAX428 - High Output Current Operational Amplifier

Datasheet Summary

Description

The MAX408/428/448 are high speed general purpose monolithic operational amplifiers in a single, dual or quad package, that are useful for signal frequencies extending into the video range.

These Op Amps function in gain configurations greater-than or equal-to 3.

Features

MAX408/428/448.

Maxim

📥 Download Datasheet

Datasheet Details

Part number	MAX428
Manufacturer	Maxim
File Size	133.14 KB
Description	High Output Current Operational Amplifier
Datasheet	MAX428 Datasheet
Additional preview pages of the MAX428 datasheet.

📁 Similar Datasheet

MAX4281 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
MAX4282 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
MAX4284 - Fixed-Gain GainAmps/Open-Loop Op Amps (Maxim Integrated)
MAX4200 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4201 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4202 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4203 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4204 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4205 - SOT23 Open-Loop Buffers (Maxim Integrated)
MAX4206 - Precision Transimpedance Logarithmic Amplifier (Maxim Integrated)

Other Datasheets by Maxim

MAX4285 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
MAX4286 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
MAX4287 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
MAX4288 - +3V/+5V / 250MHz / SOT23 ADC Buffer Amplifiers with High-Speed Disable
MAX4289 - 1.0V Micropower / SOT23 / Operational Amplifier
MAX420 - 15 Volt Chopper Stabilized Operational Amplifier
MAX4210 - High-Side Power and Current Monitors
MAX4211 - High-Side Power and Current Monitors

Full PDF Text Transcription

Click to expand full text

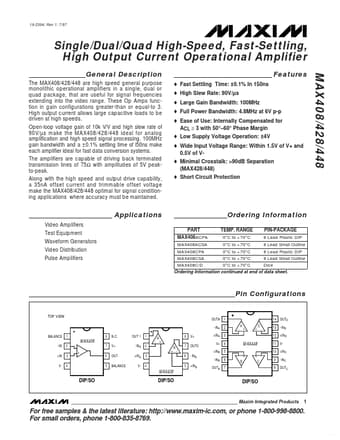

19-2394; Rev 1; 7/97 Single/Dual/Quad High-Speed, Fast-Settling, High Output Current Operational Amplifier General Description The MAX408/428/448 are high speed general purpose monolithic operational amplifiers in a single, dual or quad package, that are useful for signal frequencies extending into the video range. These Op Amps function in gain configurations greater-than or equal-to 3. High output current allows large capacitive loads to be driven at high speeds. Open-loop voltage gain of 10k V/V and high slew rate of 90V/µs make the MAX408/428/448 ideal for analog amplification and high speed signal processing. 100MHz gain bandwidth and a ±0.1% settling time of l50ns make each amplifier ideal for fast data conversion systems.
