MAX1812 - Dual USB Switch with Fault Blanking

Datasheet Summary

Description

The MAX1812 is a dual current-limited switch specifically made for USB applications.

Each channel is guaranteed to supply 500mA and meets USB specifications.

The MAX1812’s low quiescent supply current (45µA) and shutdown current (3µA) conserve battery power in portable applications.

Features

  • to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature. The device also has accurate internal current-limiting circuitry to protect the input supply against both overload and short-circuit conditions. Independent fault signals (FAULTA and FAULTB) notify the microprocessor when a thermal-overload, current limit, undervoltage lockout, or short-circuit fault occurs. A 20ms fault-blanking feature enables the circuit to ignore.

📥 Download Datasheet

Datasheet preview – MAX1812

Datasheet Details

Part number MAX1812
Manufacturer Maxim
File Size 297.00 KB
Description Dual USB Switch with Fault Blanking
Datasheet download datasheet MAX1812 Datasheet
Additional preview pages of the MAX1812 datasheet.

📁 Similar Datasheet

  • MAX18000 - 500mV to 5.5V Input nanoPower Boost Converter (Analog Devices)
  • MAX1806 - Low-Voltage Linear Regulator (Maxim Integrated)
  • MAX1820 - WCDMA Cellular Phone 600mA Buck Regulators (Maxim Integrated Products)
  • MAX1821 - WCDMA Cellular Phone 600mA Buck Regulators (Maxim Integrated Products)
  • MAX1823 - Dual USB Switch (Maxim Integrated Products)
  • MAX1823A - Dual USB Switch (Maxim Integrated Products)
  • MAX1823B - Dual USB Switch (Maxim Integrated Products)
  • MAX1823H - Dual USB Switch (Maxim Integrated Products)
  • MAX1831 - Step-Down Regulators (Maxim Integrated)
  • MAX1835 - High-Efficiency Step-Up Converters (Maxim Integrated)
Other Datasheets by Maxim
  • MAX181 - Network Interface Card Smart Regulator
  • MAX1810 - Network Interface Card Smart Regulator
  • MAX1811 - USB-Powered Li+ Charger
  • MAX1813 - Dynamically-Adjustable / Synchronous Step-Down Controller with Integrated Voltage Positioning
  • MAX1816 - Dual Step-Down Controllers Plus Linear Regulator Controller
  • MAX1817 - Compact / High-Efficiency / Dual-Output Step-Up DC-DC Converter
  • MAX1818 - 500mA Low-Dropout Linear Regulator
  • MAX180 - Complete / 8-Channel / 12-Bit Data-Acquisition Systems

Full PDF Text Transcription

Click to expand full text

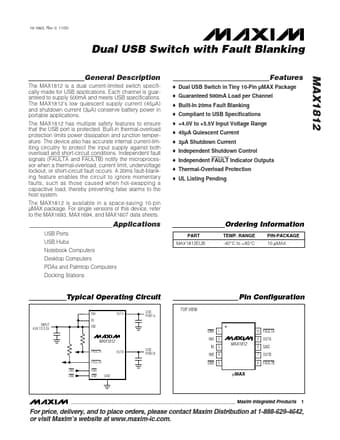

19-1865; Rev 0; 11/00 Dual USB Switch with Fault Blanking General Description The MAX1812 is a dual current-limited switch specifically made for USB applications. Each channel is guaranteed to supply 500mA and meets USB specifications. The MAX1812’s low quiescent supply current (45µA) and shutdown current (3µA) conserve battery power in portable applications. The MAX1812 has multiple safety features to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature. The device also has accurate internal current-limiting circuitry to protect the input supply against both overload and short-circuit conditions.
