MAX4453 - Single-Supply Op Amps

This page provides the datasheet information for the MAX4453, a member of the MAX Single-Supply Op Amps family.

Datasheet Summary

Description

The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption.

Features

  • o Ultra-Low 620µA Supply Current o High Speed (MAX4452/MAX4453/MAX4454) 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness 95V/µs Slew Rate o High Speed (MAX4352/MAX4353/MAX4354) 80MHz -3dB Bandwidth 4MHz 0.1dB Gain Flatness 240V/µs Slew Rate o Single +3V/+5V Operation o Rail-to-Rail Outputs o Ultra-Small SC70-5, SOT23-5, SOT23-8 and Thin SOT23-8 Packages Ordering Information PART TEMP RANGE PIN-.

📥 Download Datasheet

Datasheet preview – MAX4453

Datasheet Details

Part number MAX4453
Manufacturer Maxim
File Size 753.01 KB
Description Single-Supply Op Amps
Datasheet download datasheet MAX4453 Datasheet
Additional preview pages of the MAX4453 datasheet.

📁 Similar Datasheet

  • MAX4450 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4451 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4400 - Rail-to-Rail Op Amps (Maxim Integrated)
  • MAX44000 - Ambient and Infrared Proximity Sensor (Maxim Integrated Products)
  • MAX44007 - Low-Power Digital Ambient Light Sensor (Maxim Integrated Products)
  • MAX44009 - Ambient Light Sensor (Maxim Integrated Products)
  • MAX4401 - Rail-to-Rail Op Amps (Maxim Integrated)
  • MAX4402 - Rail-to-Rail Op Amps (Maxim Integrated)
  • MAX4403 - Rail-to-Rail Op Amps (Maxim Integrated)
  • MAX4409 - Stereo Headphone Amplifier (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX445 - Low-Cost / High-Resolution / 200MHz Video CRT Driver
  • MAX4452 - Single-Supply Op Amps
  • MAX4454 - Single-Supply Op Amps
  • MAX4455 - Arbitrary Graphics On-Screen Display Video Generator
  • MAX4456 - Video Crosspoint Switches
  • MAX440 - High-Speed Video Multiplixer/Amplifier
  • MAX44004 - Digital Ambient Light Sensor
  • MAX44005 - RGB Color / Temperature and Infrared Proximity Sensor

Full PDF Text Transcription

Click to expand full text

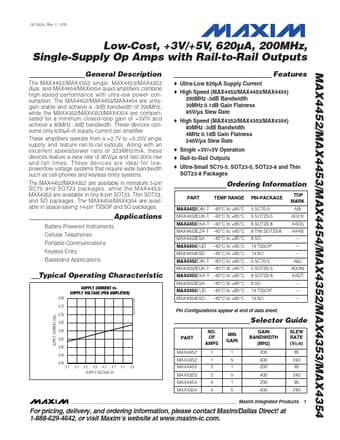

19-1824; Rev 1; 1/05 MAX4452/MAX4453/MAX4454/MAX4352/MAX4353/MAX4354 Low-Cost, +3V/+5V, 620µA, 200MHz, Single-Supply Op Amps with Rail-to-Rail Outputs SUPPLY CURRENT (mA) MAX4452/3/4 toc01 General Description The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption. The MAX4452/MAX4453/MAX4454 are unitygain stable and achieve a -3dB bandwidth of 200MHz, while the MAX4352/MAX4353/MAX4354 are compensated for a minimum closed-loop gain of +5V/V and achieve a 80MHz -3dB bandwidth. These devices consume only 620µA of supply current per amplifier. These amplifiers operate from a +2.7V to +5.25V single supply and feature rail-to-rail outputs.
