MAX4451 - Single-Supply Op Amps

This page provides the datasheet information for the MAX4451, a member of the MAX4450 Single-Supply Op Amps family.

Datasheet Summary

Description

The MAX4450 single and MAX4451 dual op amps are unity-gain-stable devices that combine high-speed performance with rail-to-rail outputs.

Both devices operate from a +4.5V to +11V single supply or from ±2.25V to ±5.5V dual supplies.

Features

  • Ultra-Small SC705 and SOT23 Packages.
  • Low Cost.
  • H.

📥 Download Datasheet

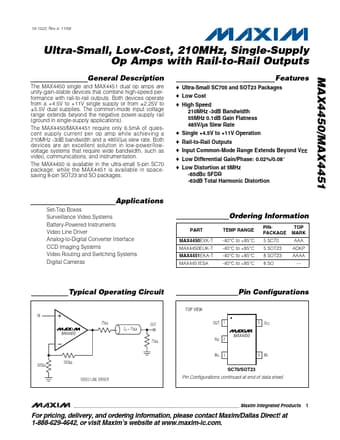

Datasheet preview – MAX4451
