MAX4450 - Single-Supply Op Amps

Datasheet Summary

Description

The MAX4450 single and MAX4451 dual op amps are unity-gain-stable devices that combine high-speed performance with rail-to-rail outputs.

Both devices operate from a +4.5V to +11V single supply or from ±2.25V to ±5.5V dual supplies.

Features

  • Ultra-Small SC705 and SOT23 Packages.
  • Low Cost.
  • H.

📥 Download Datasheet

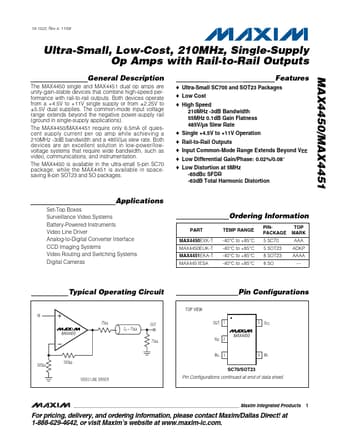

Datasheet preview – MAX4450

Datasheet Details

Part number MAX4450
Manufacturer Maxim Integrated
File Size 335.55 KB
Description Single-Supply Op Amps
Datasheet download datasheet MAX4450 Datasheet
Additional preview pages of the MAX4450 datasheet.

📁 Similar Datasheet

  • MAX445 - Low-Cost / High-Resolution / 200MHz Video CRT Driver (Maxim)
  • MAX4452 - Single-Supply Op Amps (Maxim)
  • MAX4453 - Single-Supply Op Amps (Maxim)
  • MAX4454 - Single-Supply Op Amps (Maxim)
  • MAX4455 - Arbitrary Graphics On-Screen Display Video Generator (Maxim)
  • MAX4456 - Video Crosspoint Switches (Maxim)
  • MAX440 - High-Speed Video Multiplixer/Amplifier (Maxim)
  • MAX44000 - Ambient and Infrared Proximity Sensor (Maxim Integrated Products)
  • MAX44004 - Digital Ambient Light Sensor (Maxim)
  • MAX44005 - RGB Color / Temperature and Infrared Proximity Sensor (Maxim)
Other Datasheets by Maxim Integrated

Full PDF Text Transcription

Click to expand full text
MAX4450/MAX4451 19-1522; Rev 4; 11/09 Ultra-Small, Low-Cost, 210MHz, Single-Supply Op Amps with Rail-to-Rail Outputs General Description The MAX4450 single and MAX4451 dual op amps are unity-gain-stable devices that combine high-speed performance with rail-to-rail outputs. Both devices operate from a +4.5V to +11V single supply or from ±2.25V to ±5.5V dual supplies. The common-mode input voltage range extends beyond the negative power-supply rail (ground in single-supply applications). The MAX4450/MAX4451 require only 6.5mA of quiescent supply current per op amp while achieving a 210MHz -3dB bandwidth and a 485V/µs slew rate. Both devices are an excellent solution in low-power/lowvoltage systems that require wide bandwidth, such as video, communications, and instrumentation.
