MAX4454

Single-Supply Op Amps

MAX4454 Features

* o Ultra-Low 620µA Supply Current o High Speed (MAX4452/MAX4453/MAX4454) 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness 95V/µs Slew Rate o High Speed (MAX4352/MAX4353/MAX4354) 80MHz -3dB Bandwidth 4MHz 0.1dB Gain Flatness 240V/µs Slew Rate o Single +3V/+5V Operation o Rail-to-Rail Outputs o Ultra-Sm

MAX4454 General Description

The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption. The MAX4452/MAX4453/MAX4454 are unitygain stable and achieve a -3dB bandwidth of 200MHz, while the MAX4352/MAX4353/MAX4354 are compensated for a mini.

MAX4454 Datasheet (753.01 KB)

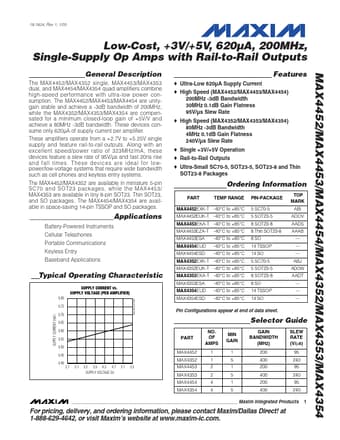

Preview of MAX4454 PDF

Datasheet Details

Part number:

MAX4454

Manufacturer:

Maxim

File Size:

753.01 KB

Description:

Single-supply op amps.
19-1824; Rev 1; 1/05 MAX4452/MAX4453/MAX4454/MAX4352/MAX4353/MAX4354 Low-Cost, +3V/+5V, 620µA, 200MHz, Single-Supply Op Amps with Rail-to-Rail Outpu.
