MAX660

CMOS Monolithic Voltage Converter

MAX660 Features

* ® ® ® ® ® ® ® ® ® Small Capacitors 0.65V Typ Loss at 100mA Load Low 120µA Operating Current 6.5Ω Typ Output Impedance Guaranteed ROUT < 15W for C1 = C2 = 10mF Pin-Compatible High-Current ICL7660 Upgrade Inverts or Doubles Input Supply Voltage Selectable Oscillator Frequency: 10kHz/80kHz 88% Typ Conv

MAX660 General Description

The MAX660 monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI. Greater than.

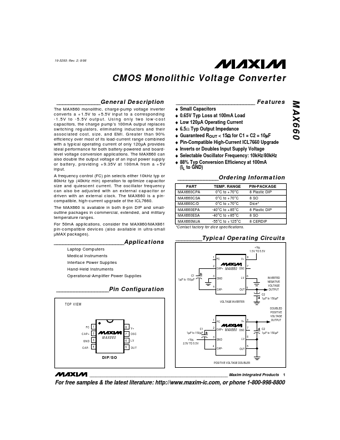

MAX660 Datasheet (108.36 KB)

Preview of MAX660 PDF

Datasheet Details

Part number:

MAX660

Manufacturer:

Maxim

File Size:

108.36 KB

Description:

Cmos monolithic voltage converter.
