MAX879

Step-Up/Step-Down DC-DC Converters

MAX879 Features

* o Regulates from Inputs Above & Below the Output o 1V to 6.2V Supply-Voltage Range o Internal 1A Active Rectifier with Input-to-Output Disconnect in Shutdown o Up to 210mA Load Currents, Guaranteed o 85% Efficiency o Only 3 External Components o Adjustable Current Limit o 195µA Quiescent Supply Curr

MAX879 General Description

The MAX877/MAX878/MAX879 are pulse-skipping, stepup/step-down DC-DC converters that provide a regulated output from inputs both above and below the output. They require only three external components

*an inductor (typically 22µH) and two filter capacitors. The MAX877 delivers a regulated 5V o.

MAX879 Datasheet (215.69 KB)

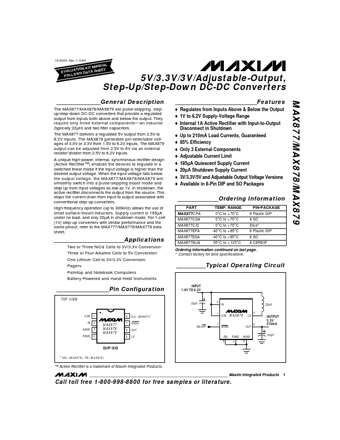

Preview of MAX879 PDF

Datasheet Details

Part number:

MAX879

Manufacturer:

Maxim

File Size:

215.69 KB

Description:

Step-up/step-down dc-dc converters.
19-0204; Rev 1; 5/94 NUAL KIT MA ATION U EET L H A S V A E T WS DA FOLLO 5V/3.3V/3V/Adjustable-Output, Step-Up/Step-Down DC-DC Converters __________.
