MAX8791B

Single-Phase Synchronous MOSFET Driver

Maxim Integrated Products

MAX8791B Features

* o Single-Phase, Synchronous MOSFET Drivers o 0.5Ω Low-Side On-Resistance o 0.7Ω High-Side On-Resistance o 8ns Propagation Delay o 15ns Minimum Guaranteed Dead Time o Integrated Boost “Diode” o 2V to 24V Input Voltage Range o Selectable Pulse-Skipping Mode o Low-Profile TQFN Package MAX8791/MAX8791B

MAX8791B General Description

The MAX8791/MAX8791B are single-phase, synchronous, noninverting MOSFET drivers. The MAX8791/ MAX8791B are intended to work with controller ICs like the MAX8736 or MAX8786, in multiphase notebook CPU core regulators. The regulators can either step down directly from the battery voltage to create the.

MAX8791B Datasheet (202.03 KB)

Rating: 1 ★ (1 votes)

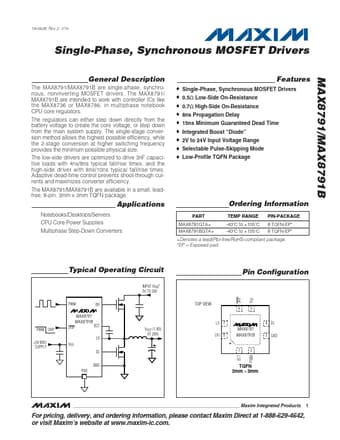

MAX8791B Datasheet Preview — Preview of MAX8791B PDF

Datasheet Details

Part number:

MAX8791B

Manufacturer:

Maxim Integrated ↗ Products

File Size:

202.03 KB

Description:

Single-phase synchronous mosfet driver.
