MAX8794, Low-Voltage DDR Linear Regulator

www.DataSheet4U.com 19-0584; Rev 0; 8/06 KIT ATION EVALU E L B A IL AVA Low-Voltage DDR Linear Regulator General .
Features. Internal Power MOSFETs with Current Limit (3A typ). Fast Load-Transient Response. External Reference Input with R.

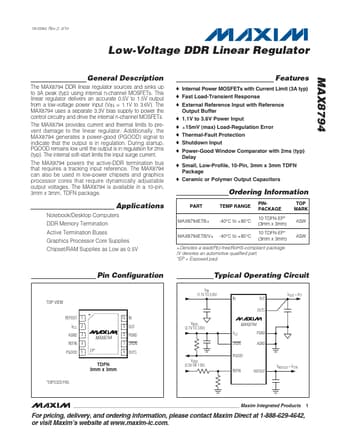

datasheet Preview Page 1 from Datasheet4u.com

MAX8794_MaximIntegratedProducts.pdf

MAX8794 Datasheet Preview — Preview of MAX8794 PDF

Datasheet Details

Part number:

MAX8794

Manufacturer:

Maxim Integrated ↗ Products

File Size:

260.34 KB

Description:

Low-Voltage DDR Linear Regulator

Features

* Internal Power MOSFETs with Current Limit (3A typ)
* Fast Load-Transient Response
* External Reference Input with Reference Output Buffer
* 1.1V to 3.6V Power Input
* ±15mV (max) Load-Regulation Error
* Thermal-Fault Protection
* Shutdown Inp

Applications

* Notebook/Desktop Computers DDR Memory Termination Active Termination Buses Graphics Processor Core Supplies Chipset/RAM Supplies as Low as 0.5V PART MAX8794ETB+ Ordering Information TEMP RANGE -40°C to +85°C PINPACKAGE 10 TDFN (3mm x 3mm) TOP MARK ABD PKG CODE T1033-1 +Denotes lead-free package.
