MAX9360 - LVTTL/TTL/CMOS-to-Differential LVECL/ ECL Translators

Maxim

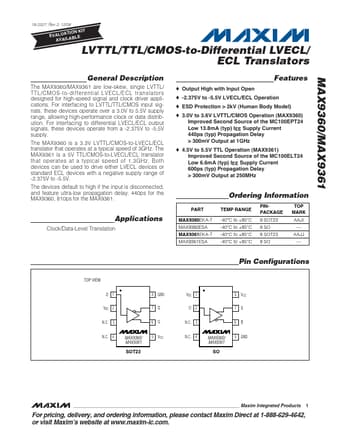

MAX9360 Datasheet Preview — Preview of MAX9360 PDF

Datasheet Details

Part number	MAX9360
Manufacturer	Maxim
File Size	91.51 KB
Description	LVTTL/TTL/CMOS-to-Differential LVECL/ ECL Translators
Datasheet	MAX9360_MaximIntegratedProducts.pdf

MAX9360 Product details

Description

The MAX9360/MAX9361 are low-skew, single LVTTL/ TTL/CMOS-to-differential LVECL/ECL translators designed for high-speed signal and clock driver applications.

Features

o Output High with Input Open o -2.375V to -5.5V LVECL/ECL Operation o ESD Protection > 2kV (Human Body Model) o 3.0V to 3.6V LVTTL/CMOS Operation (MAX9360) Improved Second Source of the MC100EPT24 Low 13.8mA (typ) IEE Supply Current 440ps (typ) Propagation Delay > 300mV Output at 1GHz o 4.5V to 5.5V TTL Operation (MAX9361) Improved Second Source of the MC100ELT24 Low 6.6mA (typ) IEE Supply Current 600ps (typ) Propagation Delay > 300mV Output at 250MHz Ordering Information PART MAX9360EKA-T MA.
