STDP3150 DisplayPort to VGA converter

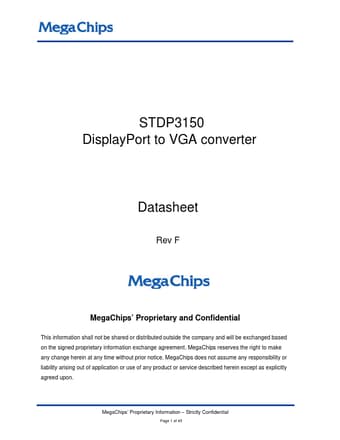

STDP3150 DisplayPort to VGA converter Datasheet Rev F MegaChips’ Proprietary and Confidential This information shall not be shared or distributed outside the company and will be exchanged based on the signed proprietary information exchange agreement. MegaChips reserves the right to make any change herein at any time without prior notice. MegaChips does not assume any responsibility or liability arising out of application or use of any product or service described herein except as explicitly agr.

STDP3150 Features

* Two lane DisplayPort® 1.2a receiver

* Triple 10-bit video DAC

* 162 MSPS throughput rate

* VSIS compatible

* RGB output with 0 to 700 mV range

* 3.3 V HSYNC, VSYNC

* Resolution through WUXGA

* EDID, MCCS pass-through support

STDP3150-MegaChips.pdf

STDP3150 Datasheet Preview — Preview of STDP3150 PDF

Datasheet Details

Part number:

STDP3150

Manufacturer:

MegaChips

File Size:

337.02 KB

Description:

Displayport to vga converter.
