STDP4020

DisplayPort receiver

STDP4020 Features

* Enhanced DisplayPort® (DP) receiver

* DP 1.1a compliant

* Embedded DisplayPort (eDP) compliant

* 1, 2, or 4 lanes

* Higher bandwidth “Turbo mode” (3.24 Gbps per lane), supports:

* 1920 x 1080 (FHD) 120 Hz/10-bit color video standard timings and 7.1 Ch audio

STDP4020 General Description

1 Description STDP4020 The STDP4020 is a DisplayPort receiver IC for the secure reception of high-bandwidth uncompressed digital audio-video signals targeted for applications such as DTV, LCD monitor, projector, and other types of display systems. STDP4020 is a VESA DP 1.1a and eDP compliant devic.

STDP4020 Datasheet (93.44 KB)

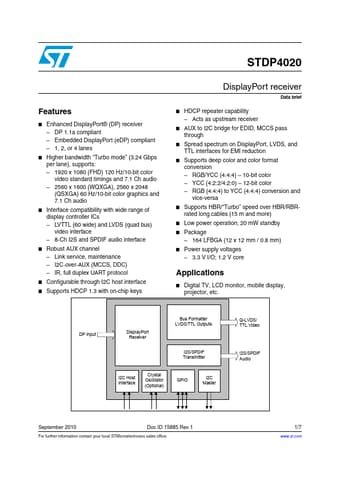

Preview of STDP4020 PDF

Datasheet Details

Part number:

STDP4020

Manufacturer:

STMicroelectronics ↗

File Size:

93.44 KB

Description:

Displayport receiver.
