STDP4028 - DisplayPort transmitter

STMicroelectronics

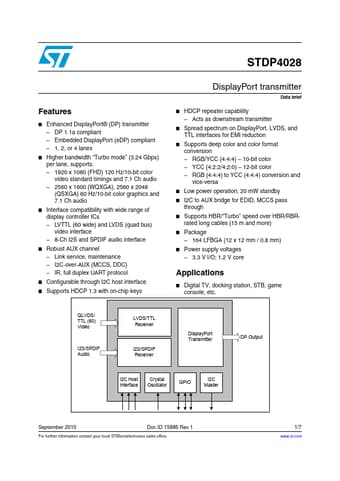

STDP4028 Datasheet Preview — Preview of STDP4028 PDF

Datasheet Details

Part number	STDP4028
Manufacturer	STMicroelectronics ↗
File Size	93.29 KB
Description	DisplayPort transmitter
Datasheet	STDP4028-STMicroelectronics.pdf

STDP4028 Product details

Description

1 Description STDP4028 The STDP4028 is a DisplayPort transmitter IC for the secure transmission of highbandwidth, uncompressed digital audio-video signals targeted for applications such as DTV, LCD monitor, docking station, and other types of display systems.STDP4028 is a VESA DP 1.1a and eDP compliant device, implementing a single link DisplayPort output port comprising four main lanes, auxiliary channel and HPD.In addition to the standard HBR (2.7 Gbps) and RBR (1.62 Gbps) speeds, this dev

Features

Enhanced DisplayPort® (DP) transmitter.
DP 1.1a compliant.
Embedded DisplayPort (eDP) compliant.
1, 2, or 4 lanes.
Higher bandwidth “Turbo mode” (3.24 Gbps) per lane, supports:.
1920 x 1080 (FHD) 120 Hz/10-bit color video standard timings and 7.1 Ch audio.
2560 x 1600 (WQXGA), 2560 x 2048 (QSXGA) 60 Hz/10-bit color graphics and 7.1 Ch audio.
Interface compatibility with wide range of display controller ICs.
LVTTL (60 wide) and.
