STDP6028, STDP6026 - (STDP6026 - STDP6038) Triple input LCD controller

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STDP6028, STDP6026. Please refer to the document for exact specifications by model.

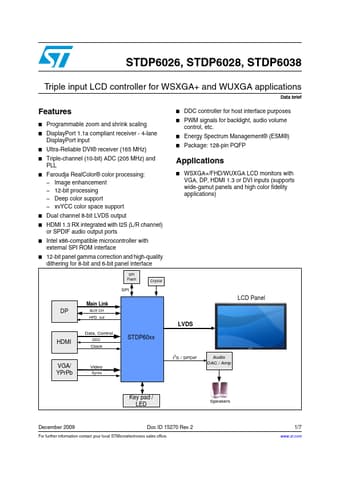

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number STDP6028, STDP6026
Manufacturer STMicroelectronics ↗
File Size 139.98 KB
Description (STDP6026 - STDP6038) Triple input LCD controller
Datasheet download datasheet STDP6026_STMicroelectronics.pdf
Note This datasheet PDF includes multiple part numbers: STDP6028, STDP6026.
Please refer to the document for exact specifications by model.

STDP6028 Product details

Description

STDP6026, STDP6028, STDP6038 1 Description STDP60xx is an all-in-one LCD monitor controller with analog (RGB), DVI, DisplayPort 1.1a inputs and supporting resolutions up to WUXGA in a 128 PQFP package.The STDP60xx leverages Genesis Microchip's patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a high-quality solution for mainstream dual input monitors.The output section contains a dual channel

Features
