STDP6026 - (STDP6026 - STDP6038) Triple input LCD controller

STMicroelectronics

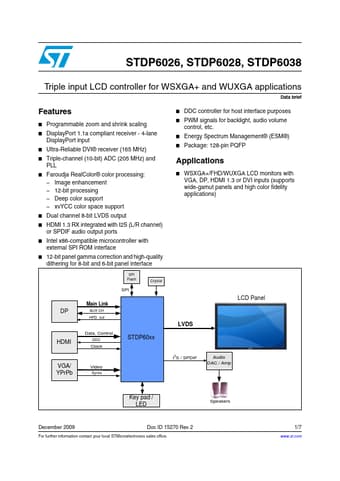

STDP6026 Datasheet Preview — Preview of STDP6026 PDF

Datasheet Details

Part number	STDP6026
Manufacturer	STMicroelectronics ↗
File Size	139.98 KB
Description	(STDP6026 - STDP6038) Triple input LCD controller
Datasheet	STDP6026_STMicroelectronics.pdf

STDP6026 Product details

Description

STDP6026, STDP6028, STDP6038 1 Description STDP60xx is an all-in-one LCD monitor controller with analog (RGB), DVI, DisplayPort 1.1a inputs and supporting resolutions up to WUXGA in a 128 PQFP package.The STDP60xx leverages Genesis Microchip's patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a high-quality solution for mainstream dual input monitors.The output section contains a dual channel

Features

DDC controller for host interface purposes PWM signals for backlight, audio volume control, etc. Energy Spectrum Management® (ESM®) Package: 128-pin PQFP Programmable zoom and shrink scaling DisplayPort 1.1a compliant receiver - 4-lane DisplayPort input Ultra-Reliable DVI® receiver (165 MHz) Triple-channel (10-bit) ADC (205 MHz) and PLL Faroudja RealColor® color processing:.
Image enhancement.
12-bit processing.
