STDP4028 - DisplayPort transmitter

The STDP4028 by MegaChips is a DisplayPort transmitter. Below is the official datasheet preview.

Datasheet Details

Part number	STDP4028
Manufacturer	MegaChips
File Size	434.46 KB
Description	DisplayPort transmitter
Datasheet	STDP4028-MegaChips.pdf

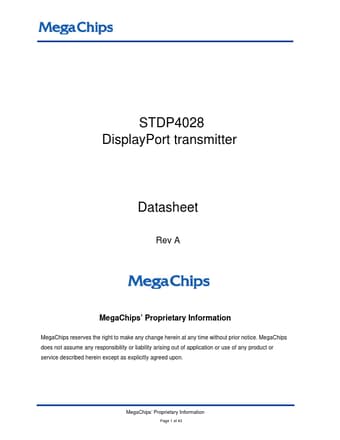

Additional preview pages of the STDP4028 datasheet.

Enhanced DisplayPort® (DP) transmitter.
DP 1.1a compliant.
Embedded DisplayPort (eDP) compliant.
1, 2, or 4 lanes.
Higher bandwidth “Turbo mode” (3.24 Gbps) per lane, supports:.
1920 x 1080 (FHD) 120 Hz/10-bit color video standard timings and 7.1 Ch audio.
2560 x 1600 (WQXGA), 2560 x 2048 (QSXGA) 60 Hz/10-bit color graphics and 7.1 Ch audio.
Interface compatibility with wide range of display controller ICs.
LVTTL (.
