MA007A

3-in-1 8-Bit Serial to Parallel Latch

MA007A Features

* Three 8-bit serial input

* Three 8-bit parallel output

* Operation voltage: 2.0V to 5.7V

* Storage register with 3-state outputs

* Shift register with direct clear

* 5 MHz (typical) shift out frequency

* Output capability:

* Parallel

MA007A General Description

The MA007 are high-speed Si-gate CMOS devices. There are three groups 8-stage serial shift register with a storage register and 3-stat.

MA007A Datasheet (544.19 KB)

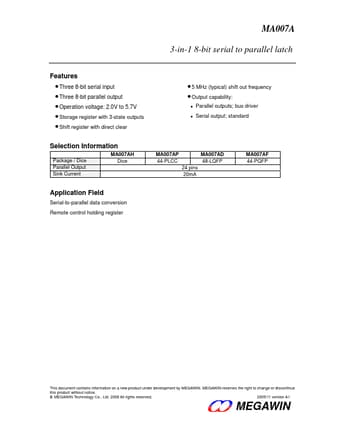

Preview of MA007A PDF

Datasheet Details

Part number:

MA007A

Manufacturer:

Megawin

File Size:

544.19 KB

Description:

3-in-1 8-bit serial to parallel latch.
