MA009A

24-Bit I/O Extender

MA009A Features

* Operation voltage: 2.0V to 5.7V

* Low standby current (1uA, typ.)

* 2 Mbps, 3-wire serial interface

* 8 chip addresses are provided

* 24 input/output pins Selection Information Package / Dice Parallel Input Parallel Output Parallel I/O Max. Sink Current M

MA009A General Description

The MA009 is high-speed Si-gate CMOS devices that provide a general purpose I/O peripheral. The MA009 provides mic.

MA009A Datasheet (652.66 KB)

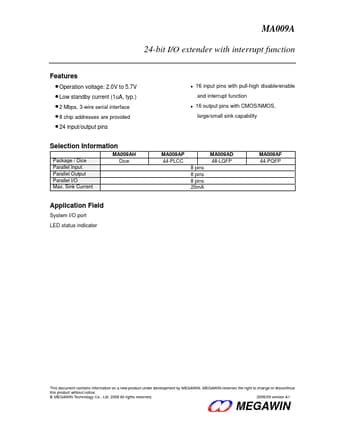

Preview of MA009A PDF

Datasheet Details

Part number:

MA009A

Manufacturer:

Megawin

File Size:

652.66 KB

Description:

24-bit i/o extender.
