MA02204AF - 3.3V 0.5W RF Power Amplifier IC for DECT

Tyco

📥 Download Datasheet

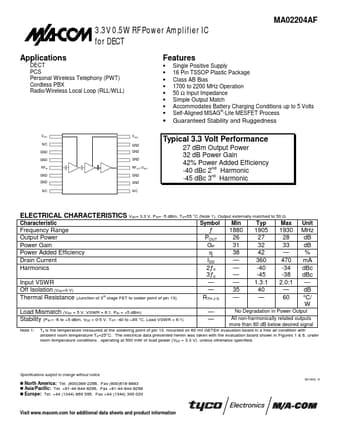

MA02204AF Datasheet Preview — Preview of MA02204AF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MA02204AF
Manufacturer	Tyco
File Size	162.57 KB
Description	3.3V 0.5W RF Power Amplifier IC for DECT
Datasheet	MA02204AF_TycoElectronics.pdf

MA02204AF Product details

Features

=.
=.
=.
=.
=.
=.
=.
= Single Positive Supply 16 Pin TSSOP Plastic Package Class AB Bias 1700 to 2200 MHz Operation 50 Ω Input Impedance Simple Output Match Accommodates Battery Charging Conditions up to 5 Volts ® Self-Aligned MSAG -Lite MESFET Process.
= Guaranteed Stability and Ruggedness VDD1 N/C GND GND RF IN GND GND N/C VDD2 GND GND GND RF OUT /VDD3 GND GND N/C Typical 3.3 Volt Performance 27 dBm Output Power 32 dB.
