MA014B

8-bit I/O type micro-controller

MA014B Features

* MA014B Preliminary Spec Ver 0.21 8-bit I/O type micro-controller with IR function

* Single chip 8-bit CPU

* Operation voltage: 1.8V to 3.6V

* Memory:

* ROM 48K Bytes

* Data RAM: 128 Bytes (shared with stack)

* 8 inputs with pull high resister, 4 open-drain output pins with

MA014B General Description

MA014B integrates an 8-bit CPU core, SRAM, timer and.

MA014B Datasheet (204.87 KB)

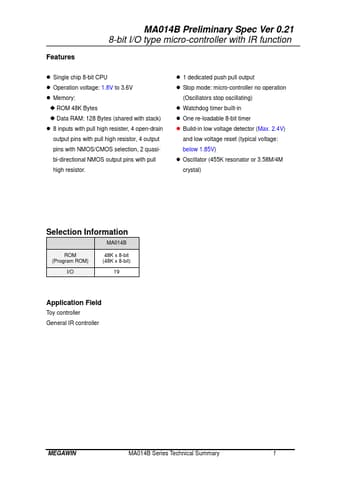

Preview of MA014B PDF

Datasheet Details

Part number:

MA014B

Manufacturer:

Megawin

File Size:

204.87 KB

Description:

8-bit i/o type micro-controller.
