MA02107AF 3.4 V / 1.2 W RF Power Amplifier IC

The MA02107AF is a three stage power amplifier, designed for paging applications to have an output power of +30.8 dBm with an input power of 0 dBm. This power amplifier operates at +3.4 volts with 55% typical power added efficiency. The MA02107AF is mounted in a standard outline 16-pin TSSOP plastic.

MA02107AF Features

* Ideal for Pager Applications

* +30.8 dBm Output Power

* 30.8 dB Power Gain

* Single Positive Supply

* Class AB Bias

* 50 Ohm Input Impedance

* Single Capacitor Output Match Functional Schematic V DD1 N/C GND GND RF IN GND GND N/C V DD2 GND GND GND RF OUT/V DD3 GND GND

MA02-107AF.pdf

This datasheet PDF includes multiple part numbers: MA02107AF, MA02. Please refer to the document for exact specifications by model.

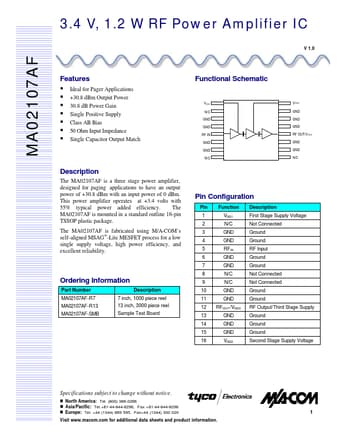

MA02107AF Datasheet Preview Page 2 MA02107AF Datasheet Preview Page 3
