TH72005 Datasheet, Transmitter, Melexis

✔ TH72005 Features

! Fully integrated PLL-stabilized VCO ! Frequency range from 290 MHz to 350 MHz ! Single-ended RF output ! FSK through crystal pulling allows modulation from DC to 40 kbi

✔ TH72005 Application

in the 315 MHz industrial-scientificmedical (ISM) band. It can also be used for any other system with carrie

PDF File Details

Melexis manufacturer logo

Part number:

TH72005

Manufacturer:

Melexis

File Size:

536.00kb

Download:

📄 Datasheet

Description:

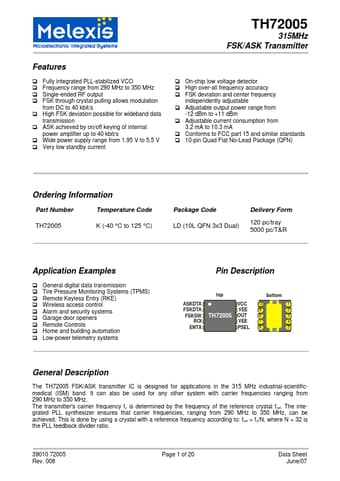

Fsk/ask transmitter. ASKDTA FSKDTA FSKSW ROI ENTX top TH72005 VCC VEE OUT VEE PSEL bottom 10 1 92 83 74 65 General Description The TH72005 FSK/ASK t
