TH72015 - FSK/ASK Transmitter

Melexis

📥 Download Datasheet

TH72015 Datasheet Preview — Preview of TH72015 PDF

Datasheet Details

Part number	TH72015
Manufacturer	Melexis
File Size	540.72 KB
Description	FSK/ASK Transmitter
Datasheet	TH72015-Melexis.pdf

TH72015 Product details

Description

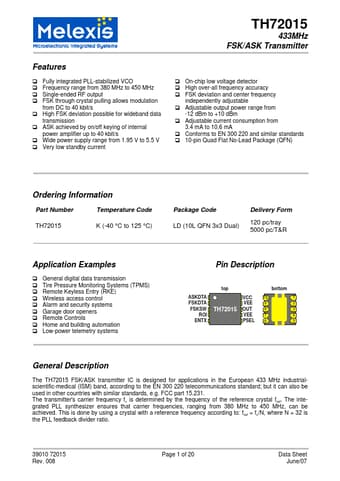

ASKDTA FSKDTA FSKSW ROI ENTX top TH72015 VCC VEE OUT VEE PSEL bottom 10 1 92 83 74 65 General Description The TH72015 FSK/ASK transmitter IC is designed for applications in the European 433 MHz industrialscientific-medical (ISM) band, according to the EN 300 220 telecommunications standard; but it can also be used in other countries with similar standards, e.g.FCC part 15.231. The transmitter's carrier frequency fc is determined by the frequency of the reference crystal fref.The integrat

Features

! Fully integrated PLL-stabilized VCO ! Frequency range from 380 MHz to 450 MHz ! Single-ended RF output ! FSK through crystal pulling allows modulation from DC to 40 kbit/s ! High FSK deviation possible for wideband data transmission ! ASK achieved by on/off keying of internal power amplifier up to 40 kbit/s ! Wide power supply range from 1.95 V to 5.5 V ! Very low standby current ! On-chip low voltage detector ! High over-all frequency accuracy ! FSK deviation and center frequency independent.
