TH72016 FSK/ASK Transmitter

TH72016 Description

TH72016 433MHz FSK/ASK Transmitter .
FSKDTA FSKSW ROI EN CKOUT top TH72016 VCC VEE OUT CKDIV PSEL bottom 10 1 92 83 74 65 General Description The TH72016 FSK/ASK transmitter IC is d.

TH72016 Features

* ! Fully integrated PLL-stabilized VCO ! Frequency range from 380 MHz to 450 MHz ! Single-ended RF output ! FSK through crystal pulling allows modulation from DC to 40 kbit/s ! High FSK deviation possible for wideband data transmission ! ASK achieved by on/off keying of internal power amplifier up to

TH72016 Applications

* in the European 433 MHz industrialscientific-medical (ISM) band, according to the EN 300 220 telecommunications standard; but it can also be used in other countries with similar standards, e. g. FCC part 15.231. The transmitter's carrier frequency fc is determined by the frequency of the reference cr

📥 Download Datasheet

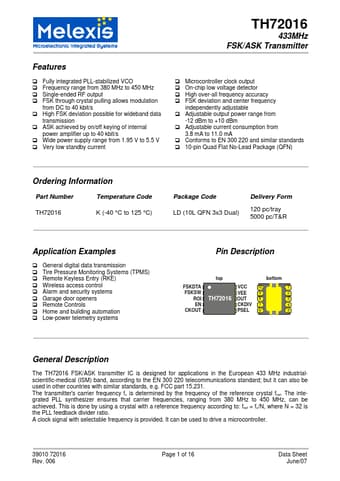

Preview of TH72016 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TH72016
Manufacturer
Melexis
File Size
320.15 KB
Datasheet
TH72016-Melexis.pdf
Description
FSK/ASK Transmitter
