TH72011 - FSK Transmitter

Melexis

📥 Download Datasheet

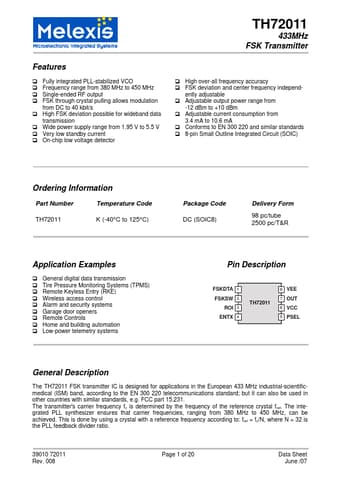

TH72011 Datasheet Preview — Preview of TH72011 PDF

Datasheet Details

Part number	TH72011
Manufacturer	Melexis
File Size	510.53 KB
Description	FSK Transmitter
Datasheet	TH72011-Melexis.pdf

TH72011 Product details

Description

FSKDTA 1 FSKSW 2 ROI 3 ENTX 4 TH72011 8 VEE 7 OUT 6 VCC 5 PSEL General Description The TH72011 FSK transmitter IC is designed for applications in the European 433 MHz industrial-scientificmedical (ISM) band, according to the EN 300 220 telecommunications standard; but it can also be used in other countries with similar standards, e.g.FCC part 15.231. The transmitter's carrier frequency fc is determined by the frequency of the reference crystal fref.The integrated PLL synthesizer ensures th

Features

! Fully integrated PLL-stabilized VCO ! Frequency range from 380 MHz to 450 MHz ! Single-ended RF output ! FSK through crystal pulling allows modulation from DC to 40 kbit/s ! High FSK deviation possible for wideband data transmission ! Wide power supply range from 1.95 V to 5.5 V ! Very low standby current ! On-chip low voltage detector ! High over-all frequency accuracy ! FSK deviation and center frequency independ- ently adjustable ! Adjustable output power range from -12 dBm to +10 dBm ! Ad.
