TH72006 - FSK/ASK Transmitter

Melexis

📥 Download Datasheet

TH72006 Datasheet Preview — Preview of TH72006 PDF

Datasheet Details

Part number	TH72006
Manufacturer	Melexis
File Size	320.13 KB
Description	FSK/ASK Transmitter
Datasheet	TH72006-Melexis.pdf

TH72006 Product details

Description

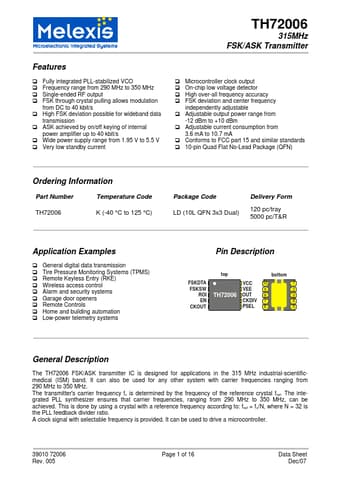

FSKDTA FSKSW ROI EN CKOUT top TH72006 VCC VEE OUT CKDIV PSEL bottom 10 1 92 83 74 65 General Description The TH72006 FSK/ASK transmitter IC is designed for applications in the 315 MHz industrial-scientificmedical (ISM) band.It can also be used for any other system with carrier frequencies ranging from 290 MHz to 350 MHz.The transmitter's carrier frequency fc is determined by the frequency of the reference crystal fref.The integrated PLL synthesizer ensures that carrier frequencies, rang

Features

! Fully integrated PLL-stabilized VCO ! Frequency range from 290 MHz to 350 MHz ! Single-ended RF output ! FSK through crystal pulling allows modulation from DC to 40 kbit/s ! High FSK deviation possible for wideband data transmission ! ASK achieved by on/off keying of internal power amplifier up to 40 kbit/s ! Wide power supply range from 1.95 V to 5.5 V ! Very low standby current ! Microcontroller clock output ! On-chip low voltage detector ! High over-all frequency accuracy ! FSK deviation a.
