MIC1555 - IttyBitty RC Timer/Oscillator

MIC1555 Description

MIC1555/1557 IttyBitty® RC Timer/Oscillator General .
The MIC1555 IttyBitty® CMOS RC timer/oscillator and MIC1557 IttyBitty® CMOS RC oscillator are designed to provide rail-to-rail pulses for precise time.

MIC1555 Features

* +2.7V to +18V operation
* Low current

MIC1555 Applications

* Precision timer
* Pulse generation
* Sequential timing
* Time-delay generation
* Missing pulse detector
* Micropower oscillator to 5MHz
* Charge-pump driver
* LED blinker
* Voltage converter
* Linear sweep generator

📥 Download Datasheet

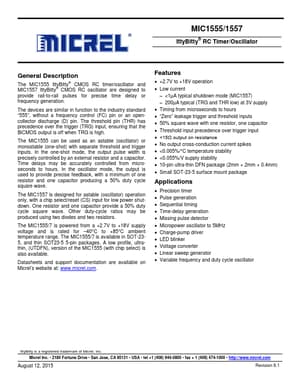

Preview of MIC1555 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MIC1555
Manufacturer
Micrel Semiconductor
File Size
913.88 KB
Datasheet
MIC1555-MicrelSemiconductor.pdf
Description
IttyBitty RC Timer/Oscillator
