MIC2558 - PCMCIA Dual Card Socket VPP Switching Matrix

Name: MIC2558
SKU: MIC2558-186752

Micrel Semiconductor

📥 Download Datasheet

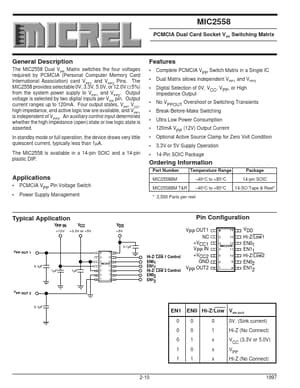

MIC2558 Datasheet Preview — Preview of MIC2558 PDF

Datasheet Details

Part number	MIC2558
Manufacturer	Micrel Semiconductor
File Size	61.23 KB
Description	PCMCIA Dual Card Socket VPP Switching Matrix
Datasheet	MIC2558-MicrelSemiconductor.pdf

MIC2558 Product details

Description

The MIC2558 Dual VPP Matrix switches the four voltages required by PCMCIA (Personal Computer Memory Card International Association) card VPP1 and VPP2 Pins.

Features

Complete PCMCIA VPP Switch Matrix in a Single IC Dual Matrix allows independent VPP1 and VPP2 Digital Selection of 0V, VCC, VPP, or High Impedance Output No VPPOUT Overshoot or Switching Transients Break-Before-Make Switching Ultra Low Power Consumption 120mA V PP (12V) Output Current Optional Active Source Clamp for Zero Volt Condition 3.3V or 5V Supply Operation 14-Pin SOIC Package Part Number.
