MIC4807

80V 8-Channel Addressable Low-Side Driver

MIC4807 Features

* 4.5V to 16V Operation Eight 80V 100mA Outputs Off-state Leakage less than 10µA at 25°C Short-Circuit Proof Thermal Shutdown with Hysteresis DMOS Output Devices (RON ≤ 7Ω at 25°C) Lamp Drivers Solenoid Drivers D

MIC4807 General Description

The MIC4807 is an 80V, 8-channel, addressable low side driver with latches and TTL/CMOS compatible logic inputs. Each logic input is composed of a comparator with a 1.4V bandgap-derived reference serving as the trip point. The addresses (AIN, BIN, and CIN) and Data-in logic inputs have an internal 5.

MIC4807 Datasheet (103.37 KB)

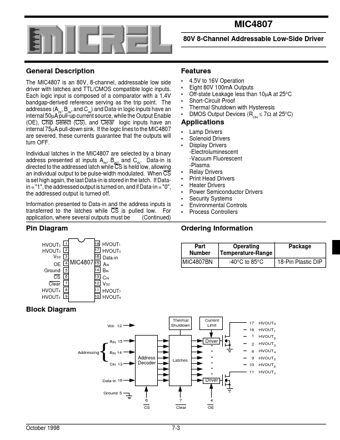

Preview of MIC4807 PDF

Datasheet Details

Part number:

MIC4807

Manufacturer:

Micrel Semiconductor

File Size:

103.37 KB

Description:

80v 8-channel addressable low-side driver.
