MIC4826, Low Input Voltage/ 160VPP Output Voltage/ EL Driver

MIC4826 Micrel MIC4826 Low Input Voltage, 160VPP Output Voltage, EL Driver Final Information General .
Micrel’s MIC4826 is a high output voltage, DC to AC converter, designed for driving EL (Electroluminescent) lamps.

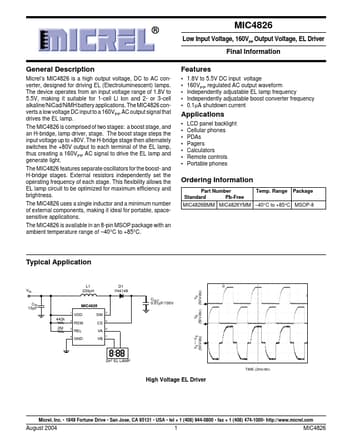

datasheet Preview Page 1 from Datasheet4u.com

MIC4826-MicrelSemiconductor.pdf

MIC4826 Datasheet Preview — Preview of MIC4826 PDF

Datasheet Details

Part number:

MIC4826

Manufacturer:

Micrel Semiconductor

File Size:

123.29 KB

Description:

Low Input Voltage/ 160VPP Output Voltage/ EL Driver

Features

* separate oscillators for the boost- and H-bridge stages. External resistors independently set the operating frequency of each stage. This flexibility allows the EL lamp circuit to be optimized for maximum efficiency and brightness. The MIC4826 uses a single inductor and a minimum number of external

Applications

* The MIC4826 converts a low voltage DC input to a 160VPP AC output signal that drives the EL lamp. The MIC4826 is comprised of two stages: a boost stage, and an H-bridge, lamp driver, stage. The boost stage steps the input voltage up to +80V. The H-bridge stage then alternately switches the +80V out
