MIC4830

Low Noise 180VPP EL Driver

Micrel Semiconductor

MIC4830 Features

* 1.8V to 5.5V input voltage 180Vpp output voltage Low audible noise EL drive waveform Supports EL panel sizes up to 4in2 (25cm2) Low 45µA operating supply current Small inductor size with low profile (

MIC4830 General Description

The MIC4830 is a low noise 180VPP electroluminescent lamp (EL) driver. Using advanced Bipolar, CMOS, DMOS (BCD) technology, the MIC4830 integrates a high voltage boost converter and an H-bridge driver for driving a large EL lamp. The MIC4830 can drive large panel displays for mobile phones, multimed.

MIC4830 Datasheet (692.86 KB)

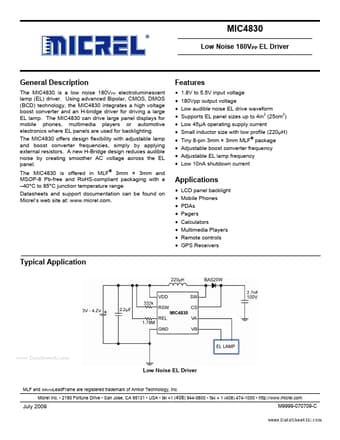

MIC4830 Datasheet Preview — Preview of MIC4830 PDF

Datasheet Details

Part number:

MIC4830

Manufacturer:

Micrel Semiconductor

File Size:

692.86 KB

Description:

Low noise 180vpp el driver.
