MIC4832

Low Noise 220VPP EL Driver

Micrel Semiconductor

MIC4832 Features

* 1.8V to 5.5V DC input voltage 220Vpp output voltage capable Low audible noise EL drive waveform Supports EL panel sizes up to 3in2 (19cm2) Low 45µA operating supply current Small inductor size with lo

MIC4832 General Description

The MIC4832 is a low noise 220VPP electroluminescent lamp (EL) driver. Using advanced Bipolar, CMOS, DMOS (BCD) technology, the MIC4832 integrates a high voltage boost converter and an H-bridge driver for driving a large EL lamp. The MIC4832 can drive large panel displays for mobile phones, multimed.

MIC4832 Datasheet (575.03 KB)

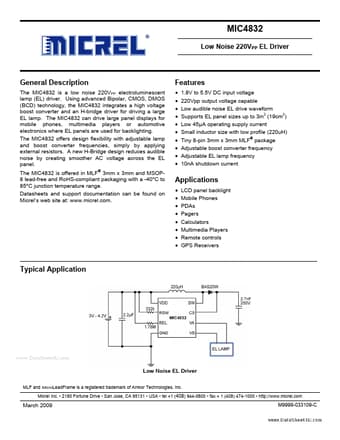

MIC4832 Datasheet Preview — Preview of MIC4832 PDF

Datasheet Details

Part number:

MIC4832

Manufacturer:

Micrel Semiconductor

File Size:

575.03 KB

Description:

Low noise 220vpp el driver.
