MIC4811

High Current 6 Channel Linear WLED Driver

Micrel Semiconductor

MIC4811 Features

* a typical dropout of 100mV at 50mA. The MIC4811 features Dynamic Average Matching™ (DAM™) which is specifically designed to provide optimum matching across all WLEDs. The high accuracy (±1% typical) current regulated WLED channels ensure uniform display illumination under all conditions. The brightn

MIC4811 General Description

The MIC4811 is a high efficiency linear White LED (WLED) driver designed to drive up to six high current WLEDs for signage lighting. The MIC4811 provides the highest possible efficiency as this architecture has no switching losses present in traditional charge pumps or inductive boost circuits. The .

MIC4811 Datasheet (609.82 KB)

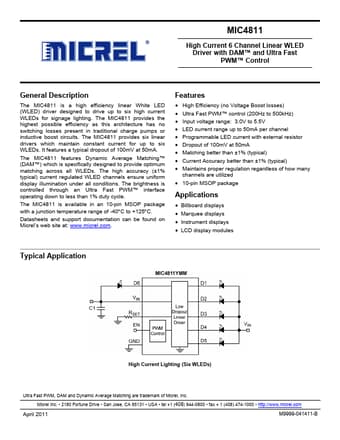

MIC4811 Datasheet Preview — Preview of MIC4811 PDF

Datasheet Details

Part number:

MIC4811

Manufacturer:

Micrel Semiconductor

File Size:

609.82 KB

Description:

High current 6 channel linear wled driver.
